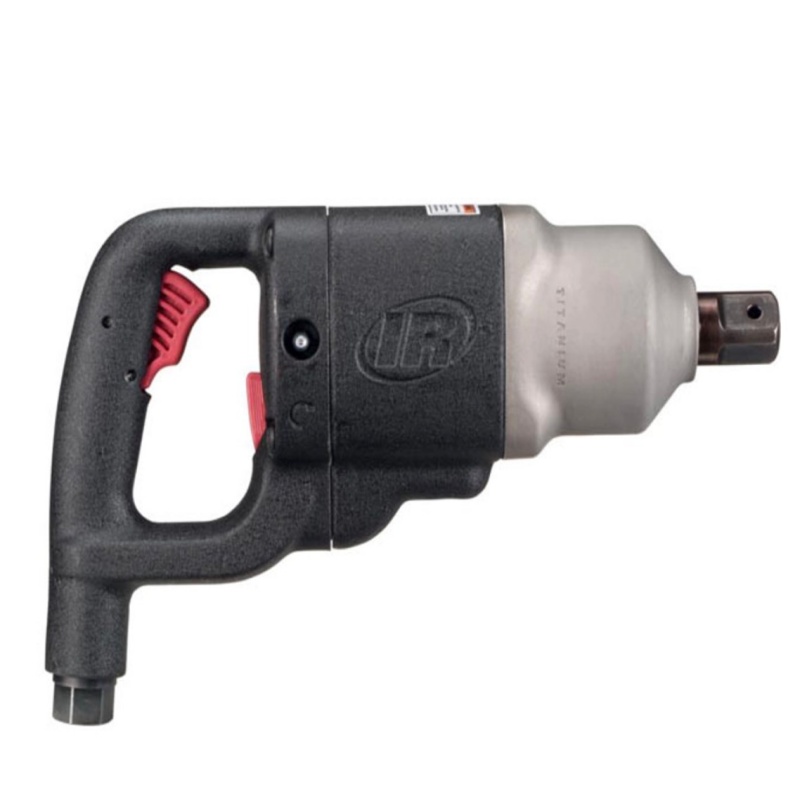

2925 Series 3/4″ & 1″ Air Impact Wrenches, D-Handle
2925 Series 3/4″ & 1″ Air Impact Wrenches, D-Handle

2925 Series 3/4″ & 1″ Air Impact Wrenches, D-Handle

Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.

  • رقم الصنف :

    2925 Series 3/4″ & 1″ Air Impact Wrenches, D-Handle
  • الطلب (الحد الأدنى لكمية الطلب) :

    1PC
  • قسط :

    T/T
  • أصل المنتج :

    China
  • لون :

    Black
  • ميناء الشحن :

    Xiamen
  • مهلة :

    15days

Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.

Features

Durability:

Thanks to a titanium hammer case, this wrench is both lightweight and durable.

Reliability:



The 2925 Series’ twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.

Multiple Trigger Options:



This tool features both standard trigger and inside trigger actuation, allowing you to choose whichever works best for the task at hand.

Other Features:



Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments

Choice of reverse bias or non-biased motors gives you solutions for both removing or fastening bolts

Pressure-fed mechanism lubrication ensures complete coverage throughout the tool

Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding

Integral muffler

3/8” NPT inlet

1-year warranty



Model

Configuration

Actuation

Drive Size

Drive Type

Forward Torque (ft-lbs)

Forward Torque (Nm)

Max Reverse Torque (ft-lbs)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Impacting Sound Level dB(A) -- ISO15744 (pressure/power)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level m/s2 (K)

Weight (lbs)

Weight (kg)

Width (in)

Width (mm)

Height (in)

Height (mm)

Length (in)

Length (mm)

Air Inlet

Min Hose Size (in)

Min Hose Size (mm)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

PSI

Bar

2925B2Ti

D-Handle

Inside Trigger

1 in.

Square, Thru-Hole

1250

1695

1600

2169

900

6500

95.9 / 106.9

99.6 / 110.6

9.8 (1.3)

15.2

6.89



10.9

276

13.3

337

3/8 in.

1/2

13

60

1699

12

340

90

6.2

2925P1Ti

Pistol

Trigger

3/4 in.

Square, Thru-Hole

1100

1492

1450

1966

1050

5200

95.9 / 106.9

99.6 / 110.6

10.5 (1)

12

5.44

3.5

89

9.6

244

8.9

226

3/8 in.

1/2

13

60

1699

12

340

90

6.2

2925RB2Ti

D-Handle

Inside Trigger

1 in.

Square, Thru-Hole

1300

1763

1700

2304

900

6500

95.9 / 106.9

99.6 / 110.6

9.8 (1.3)

15.2

6.89



10.9

276

13.3

337

3/8 in.

1/2

13

60

1699

12

340

90

6.2

2925RBP1Ti

Pistol

Trigger

3/4 in.

Square, Thru-Hole

1300

1763

1600

2169

1050

5200

95.9 / 106.9

99.6 / 110.6

10.5 (1)

12

5.44

3.5

89

9.6

244

8.9

226

3/8 in.

1/2

13

60

1699

12

340

90

6.2

2925RBP3Ti

Pistol

Trigger

1 in.

Square, Thru-Hole

1300

1763

1600

2169

1050

5200

95.9 / 106.9

99.6 / 110.6

10.5 (1)

12.2

5.54

3.5

89

9.6

244

9

230

3/8 in.

1/2

13

60

1699

12

340

90

6.2
