Model | Configuration | Actuation | Drive Size | Drive Type | Forward Torque ft-lbs (Nm) | Max Reverse Torque ft-lbs (Nm) | Blows per minute | Free Speed (RPM) | Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power) | Vibration Level (m/s²) | Weight lbs (kg) | Length in (mm) | Air Inlet in (mm) | Min Hose Size in (mm) | PSI | Bar |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

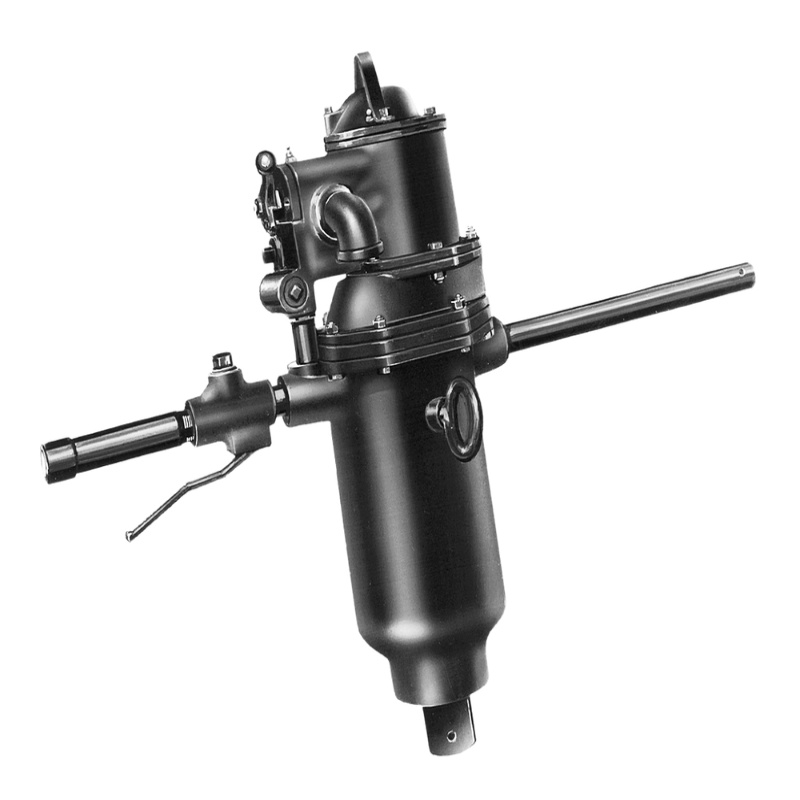

588A1 | T-Handle | Lever | 2-1/2 in. | Square, Thru-Hole | 25000 (33900) | 50000 (67800) | 550 | 355 | 110.0 / 121.0 | 20.5 | 215 (97.5) | 26.63 (676) | 1 (25.4) | 1 (25.4) | 90 | 6.2 |
