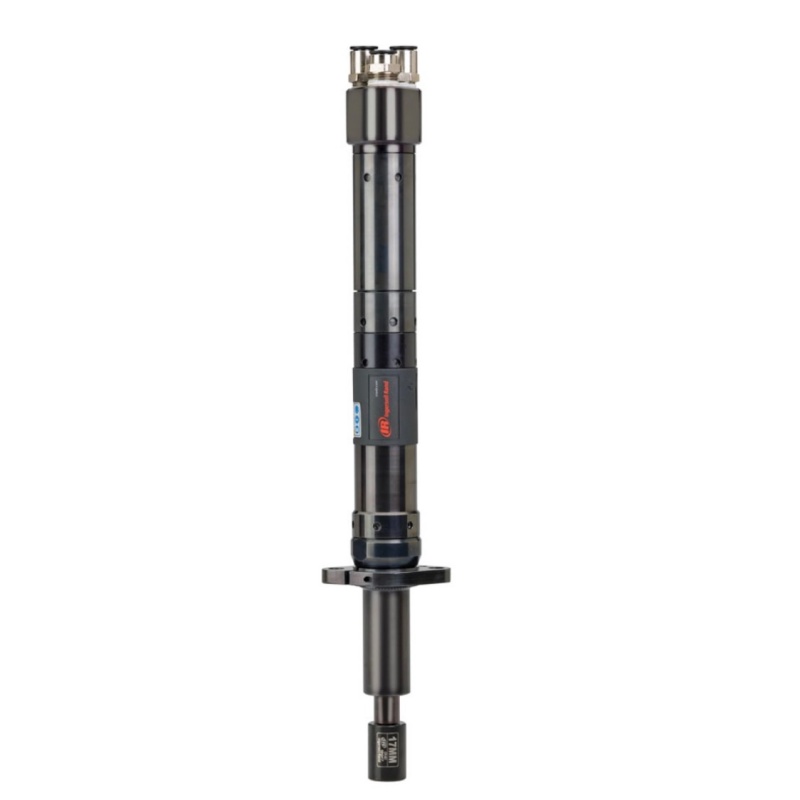

QA6 Series Fixtured Inline Remote Stall Air Nutrunner

QA6 Series Fixtured Inline Remote Stall Air Nutrunner

The QA6 Series Inline Fixtured Stall nutrunner is designed with the end user in mind. With a conveniently placed reverse ring and multiple mounting flange options, this tool is both flexible and comfortable to use. The stalls applied torque control is designed for soft-pull applications in wood and other materials and can be limited by regulating air pressure.

  • رقم الصنف :

    QA6 Series Fixtured Inline Remote Stall Air Nutrunner
  • الطلب (الحد الأدنى لكمية الطلب) :

    1PC
  • قسط :

    T/T
  • أصل المنتج :

    China
  • لون :

    Black
  • ميناء الشحن :

    Xiamen
  • مهلة :

    15days
  • وزن :

    2.61kg

The QA6 Series Inline Fixtured Stall nutrunner is designed with the end user in mind. With a conveniently placed reverse ring and multiple mounting flange options, this tool is both flexible and comfortable to use. The stalls applied torque control is designed for soft-pull applications in wood and other materials and can be limited by regulating air pressure.

Features

Durable:



This motor runs to stall, providing extra durability and consistent torque repeatability.

Easy to Maintain:



All QA6 Series tools are designed for long-lasting use with minimal upkeep.



Model

Actuation

Torque Range (Nm)

Torque Range (ft-lb)

Free Speed (rpm)

Weight (kg)

Weight (lb)

Length (mm)

Length (in)

Head Side to Center (mm)

Head Side to Center (in)

Air Inlet

cfm

Spindle Type

Common Fastener Size

Sound (dBA)

QA6ASRD025NF41S06

Remote Start

22 -25

16.2 - 18.4

700

2.61

5.76

454

17.9

34

1.34



36

3/8 in. Square

M6 - M8

82.5

QA6ASRD030NF41S06

Remote Start

26 - 30

19.2 - 22.1

585

2.61

5.76

454

17.9

34

1.34



36

3/8 in. Square

M8

82.5

QA6ASRD040NF41S06

Remote Start

35 - 40

25.8 - 29.5

435

2.61

5.76

454

17.9

34

1.34



36

3/8 in. Square

M8

82.5

QA6ASRD055NF41S08

Remote Start

49 - 55

36.1 - 40.6

315

2.62

5.78

454

17.9

34

1.34



36

1/2 in. Square

M10

82.5
