WIVOR

BM-R 36V series CNC brushless charging torque wrench

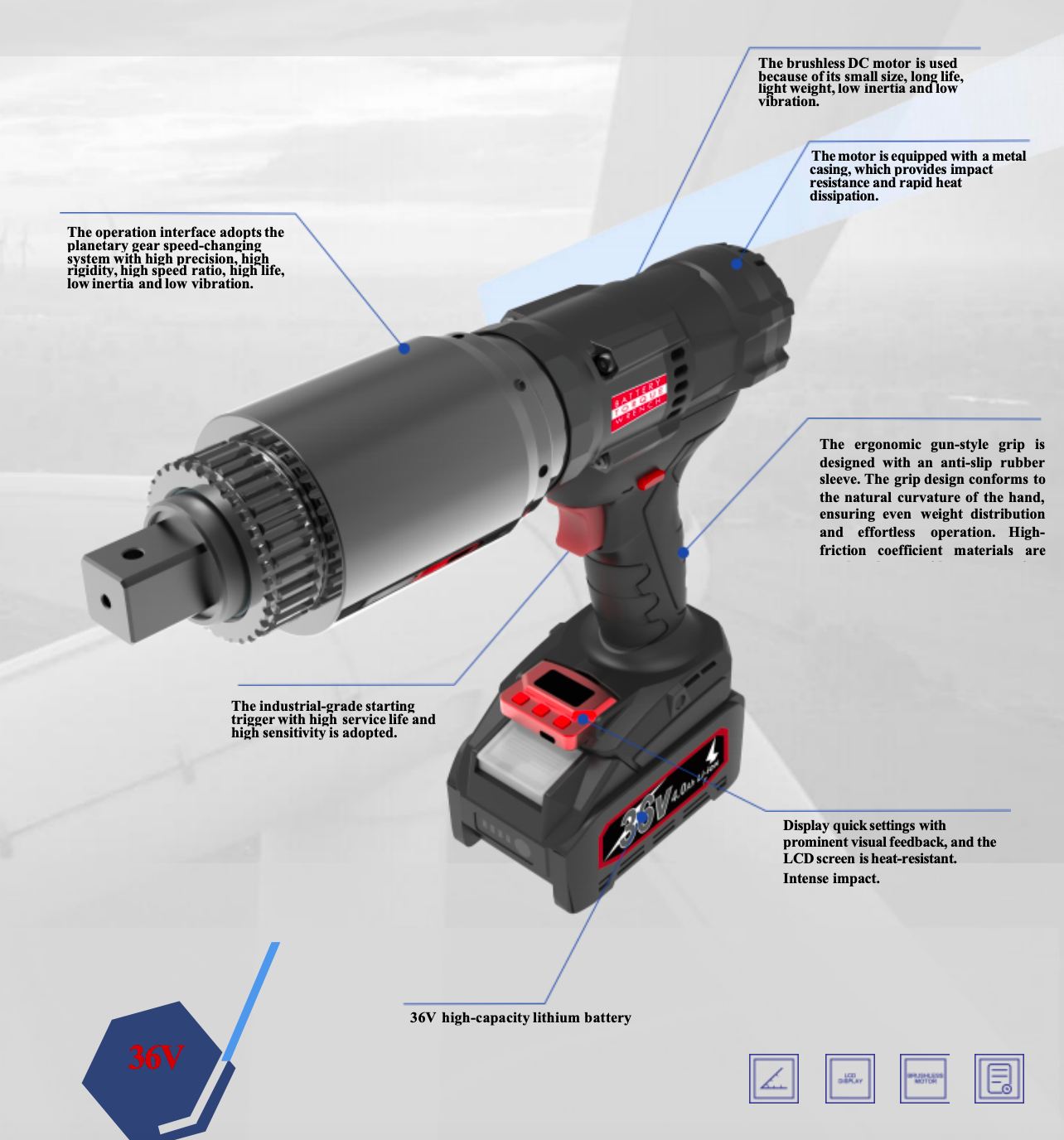

The BM-R series features next-generation high-power 36V brushless motors with carbon-free brushes, offering maintenance-free operation, enhanced durability, and compliance with stringent requirements for high precision, strength, and safety. It incorporates a planetary gear transmission system with high precision output ratios, paired with high-capacity batteries and fast-charging technology, achieving ±5% accuracy. The BMR series delivers robust performance and exceptional speed.

رقم الصنف :
BM-R 36V series CNC brushless charging torque wrench
الطلب (الحد الأدنى لكمية الطلب) :
1PC
قسط :
T/T
أصل المنتج :
China
لون :
Black
ميناء الشحن :
Xiamen
مهلة :
15days

استفسر الآن

تفاصيل المنتج

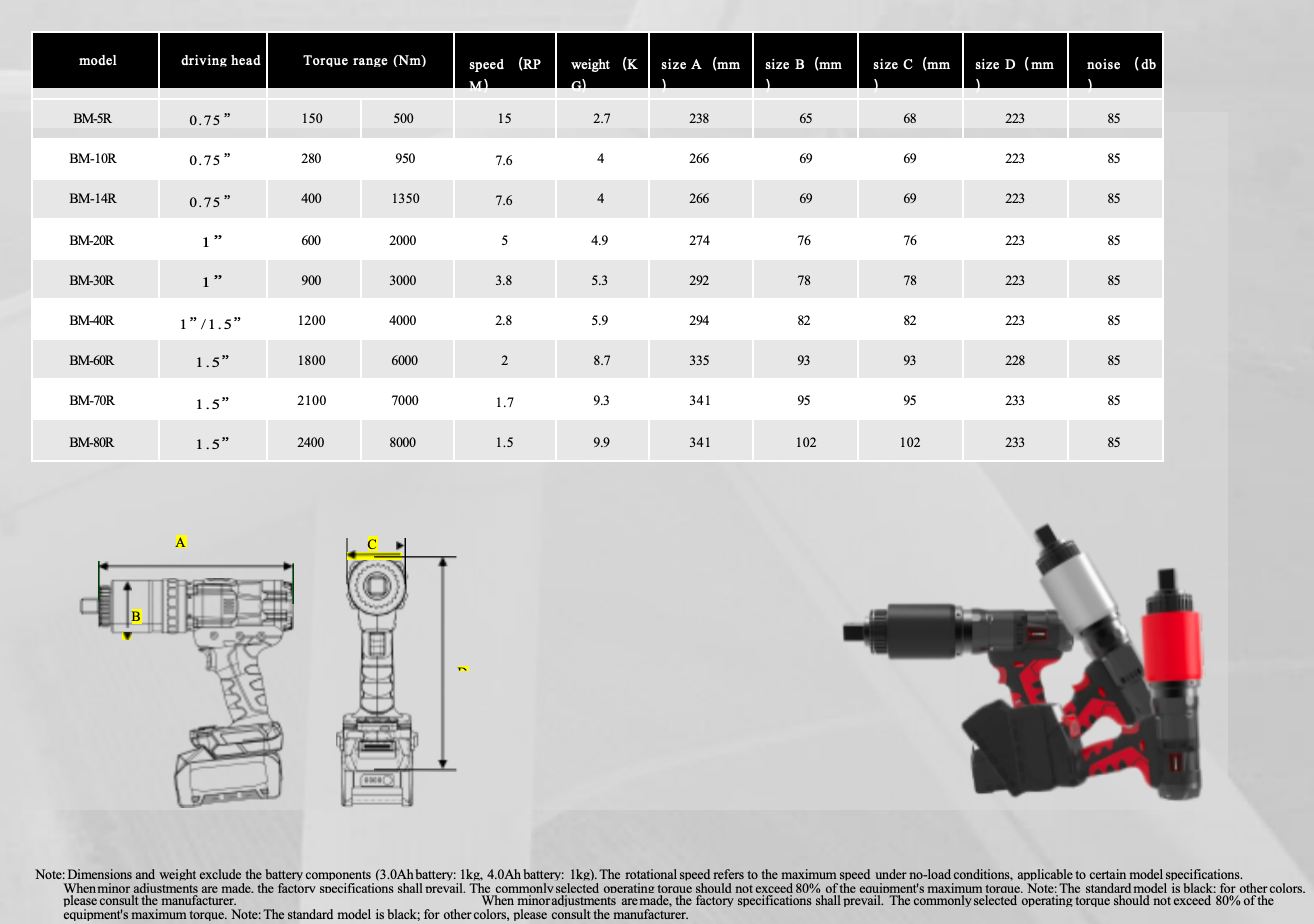

Model Specifications

The brushless motor eliminates the need for carbon brush replacement

It features a 0.96-inch color large-screen display for more intuitive parameter display.

Supports switching between Chinese and English

Digital adjustment and display of torque and wrench working status parameters

The torque can be adjusted in increments of 1Nm within the torque range.

Programmable preset for 10 common output torque values

Supports torque mode and preset mode

High reliability and stability of multi-pole planetary gear box

User (operator, administrator) level management

The buzzer indicates suitability for factory environments.

Background torque calibration software compensation function

Overheating temperature monitoring function of wrench

Battery power monitoring and compensation

torque overload limit function

Supports metric and imperial units

High-capacity air-cooled lithium battery, fast-charging charger

Supports larger-capacity air-cooled lithium batteries with capacities of 4.0AH/3.0AH and 36V

Standard compliant standard counterweight arm, customizable counterweight arm available

Supports the installation of hoisting systems for safer high-altitude operations

Supports local logs and USB log and data reading

Anti-reaction force arm locking to achieve automatic unloading function with adjustable angle

Supports data storage, can store more than 50,000 data entries-*P (optional)

Supports angle function (optional)
