VM-D series Single speed electric torque wrench

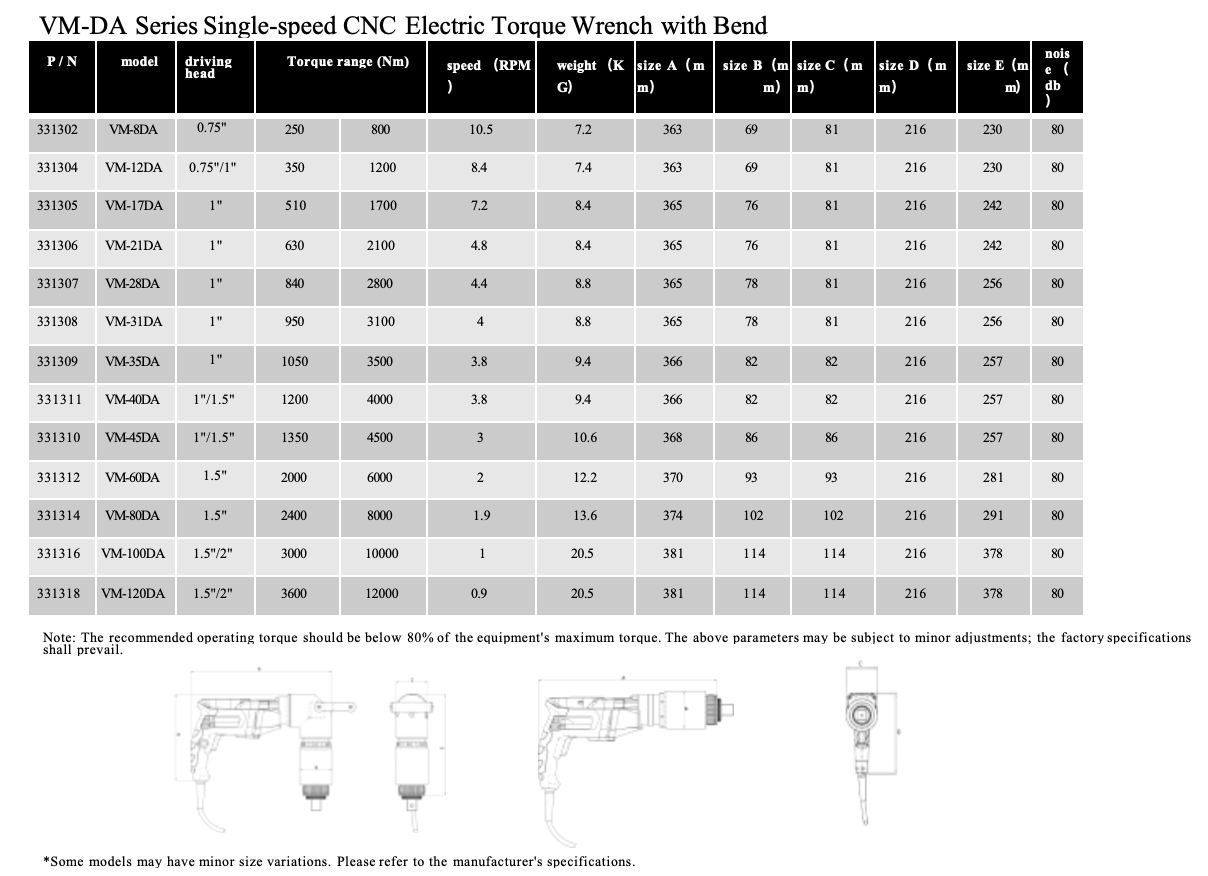

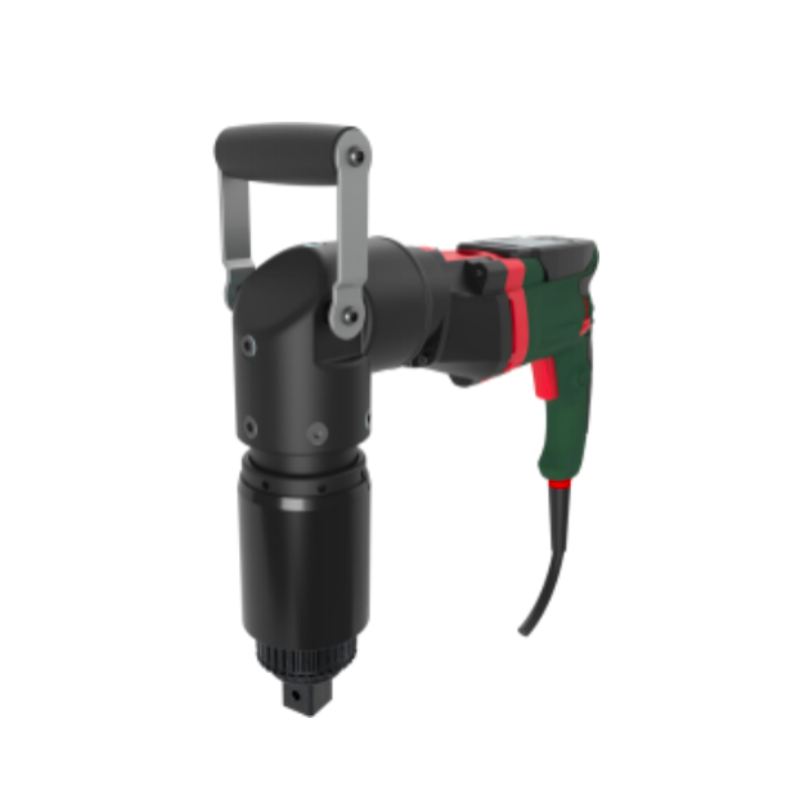

VM-DA Series Single-speed CNC electric torque wrench for elbow

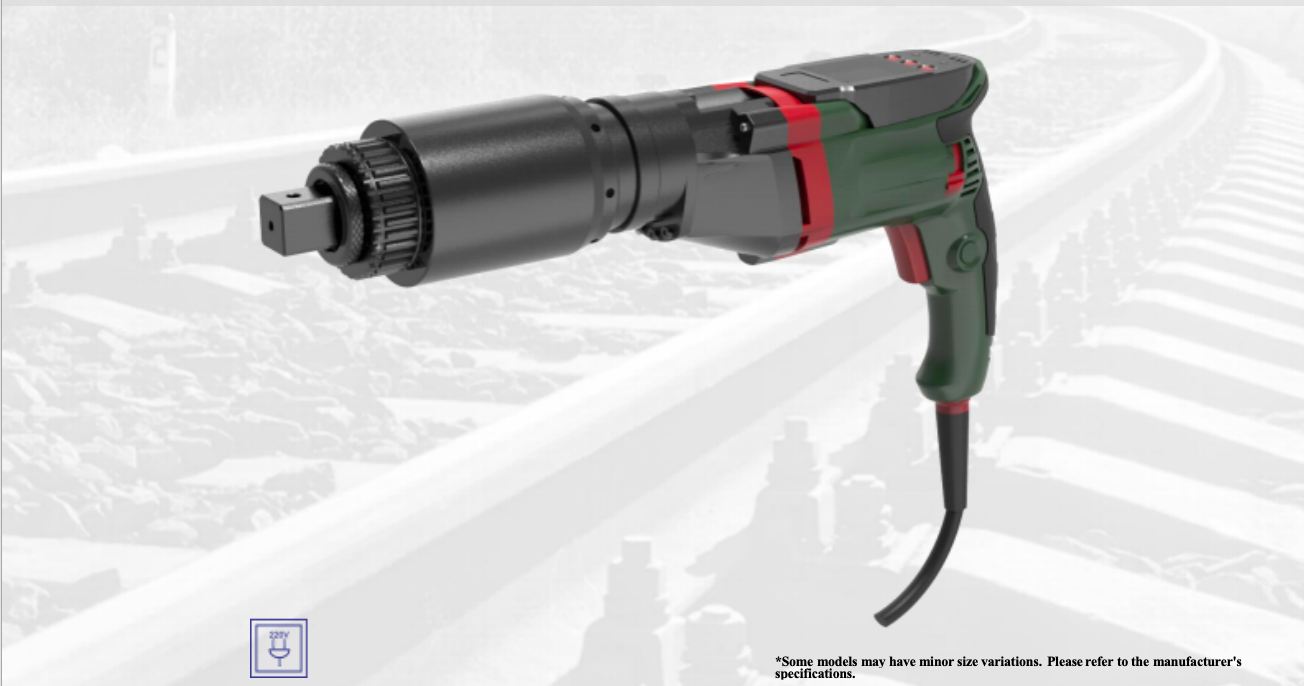

VM-D series Single speed electric torque wrench

The VM-D series represents the latest generation of digitally controlled electric torque wrenches. These devices operate on standard power supply, delivering high precision, robust performance, and safety features. Featuring a high-power-output planetary gear reduction system, the VM series achieves lightweight design. Equipped with a color control panel for precise torque adjustment and a high-performance digital control module, it ensures smooth and continuous torque output with ±5% accuracy.

رقم الصنف :
VM-D series Single speed electric torque wrench
الطلب (الحد الأدنى لكمية الطلب) :
1PC
قسط :
T/T
أصل المنتج :
China
لون :
Black
ميناء الشحن :
Xiamen
مهلة :
15days

استفسر الآن

تفاصيل المنتج

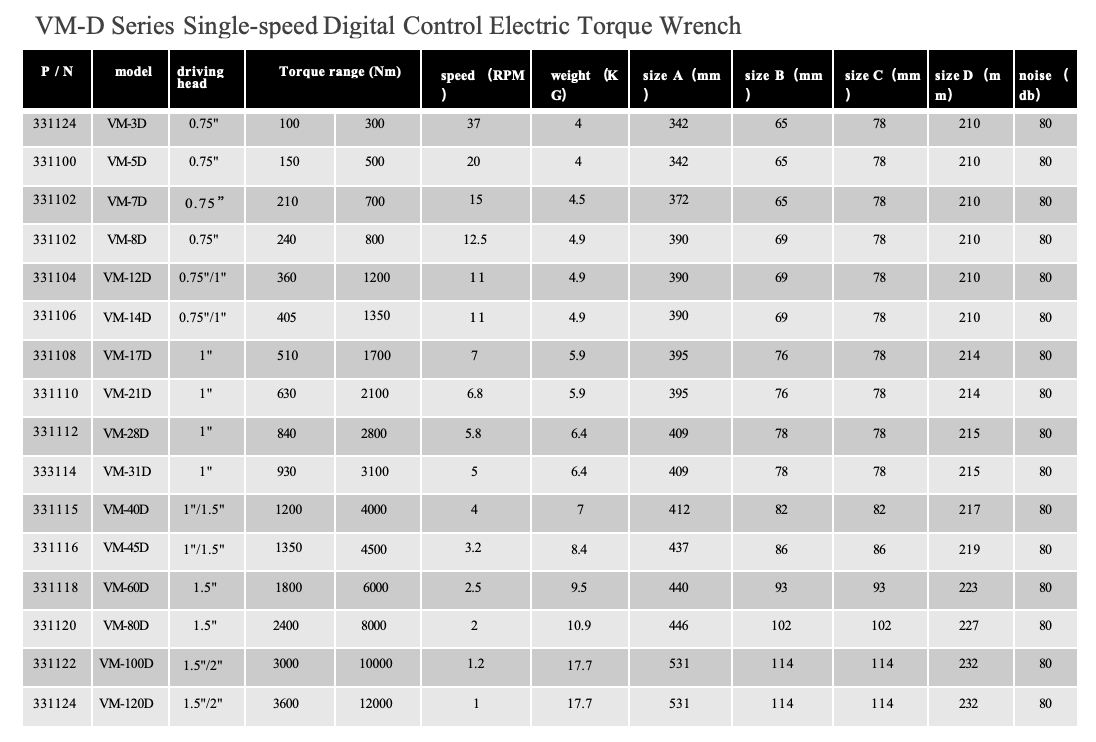

Model Specifications

The target torque is set and displayed digitally via the CNC panel, with torque adjustment capability for ±1Nm increments.

10 preset values for quick adjustment

Supports gear adjustment mode with convenient adjustment, suitable for construction environments

The bolt torque reference table format facilitates the identification of appropriate torque values.

Gain adjustment function for convenient and rapid torque setting

Exceptionally high power-to-weight ratio, wider torque range, lighter and more compact.

Reverse Unloading Function

User (operator, administrator) level management

The recommended tightening and loosening torque can be determined based on the bolt's strength grade and size. This reference value can be adjusted to match actual operating conditions.

The power supply voltage stabilizing unit, the input voltage rectification feedback control function can suppress the fluctuation of the input voltage of the power grid, improve the torque precision

accuracy ±5%

Tighten results follow monitoring (failed, succeeded, incomplete)

Optional Bluetooth or WIFI module, torque gateway system, supports IoT connectivity with host computer and MES management system*-W/B

Optional bolt tightening data upload (upload format definition) *P
