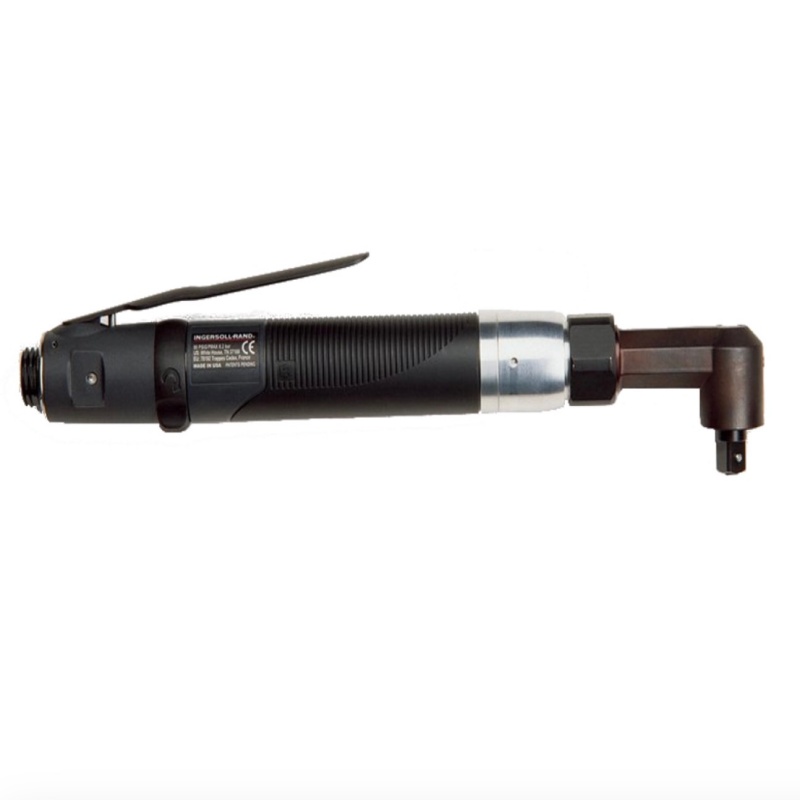

Q2 Series Handheld Angle Stall Air Nutrunner

Q2 Series Handheld Angle Stall Air Nutrunner

For a precise, reliable and quiet performance, look no further than the Q2 Series Angle Stall nutrunner. The wide torque range and fast speeds give you the power to complete any job.

  • رقم الصنف :

    Q2 Series Handheld Angle Stall Air Nutrunner
  • الطلب (الحد الأدنى لكمية الطلب) :

    1PC
  • قسط :

    T/T
  • أصل المنتج :

    China
  • لون :

    Black
  • ميناء الشحن :

    Xiamen
  • مهلة :

    15days
  • وزن :

    1.5kg

For a precise, reliable and quiet performance, look no further than the Q2 Series Angle Stall nutrunner. The wide torque range and fast speeds give you the power to complete any job.

Features

Performance:



For all your fastening jobs, speeds of 250 to 1,750 rpm give you the power the task demands.

Ergonomic Grip:



This tool is made to fit comfortably in your hand for a secure hold as you work.

Accuracy:



Expect the same results each time, and this tool will deliver.

Compact:



The smaller dimensions are ideal for easy transportation and storage.

Lightweight:



Work all day without being weighed down.

Well-Balanced Design:



This tool is steady in your hand for a comfortable, stable feel each time.



Model Actuation Torque Range (Nm) Torque Range (in-lb) Free Speed (rpm) Weight (kg) Weight (lb) Length (mm) Length (in) Angle Head Side to Center (mm) Angle Head Side to Center (in) Angle Head Height (mm) Angle Head Height (in) Height to Base of Bit (in) Air Inlet cfm Spindle Type Sound (dBA)
QA1L02D6LD Lever Start 0 - 9.7 0 - 85.3 250 0.7 1.5 26 8.9 13.7 0.54 33 1.3 1.34 1/4 in. NPT 16 3/8 in. Square 75
QA1L05D1LD Lever Start 0 - 11.6 0 - 102.3 500 0.7 1.54 226.8 8.93 13.7 0.54 33 1.3 1.34 1/4 in. NPT 16 1/4 in. Hex Quick Change 75
QA1L05D4LD Lever Start 0 - 11.6 0 - 102.3 500 0.7 1.5 226 8.9 13.2 0.52 33 1.3 1.34 1/4 in. NPT 16 1/4 in. Square 75
QA1L05D6LD Lever Start 0 - 11.6 0 - 102.3 500 0.7 1.5 226 8.9 13.2 0.52 33 1.3 1.34 1/4 in. NPT 16 3/8 in. Square 75
QA1L08D1LD Lever Start 0 - 6.8 0 - 60.2 850 0.7 1.5 226 8.9 13.2 0.52 33 1.3 1.34 1/4 in. NPT 16 1/4 in. Hex Quick Change 75
QA1L08D4LD Lever Start 0 - 6.8 0 - 60.2 850 0.7 1.5 226 8.9 13.2 0.52 33 1.3 1.34 1/4 in. NPT 16 1/4 in. Square 75
QA1L08D6LD Lever Start 0 - 6.8 0 - 60.2 850 0.7 1.5 226 8.9 13.2 0.52 33 1.3 1.34 1/4 in. NPT 16 3/8 in. Square 75
QA1L12D1LD Lever Start 0 - 4.0 0 - 35.4 1270 0.7 1.54 226 8.9 13.2 0.52 33 1.3 1.34 1/4 in. NPT 16 1/4 in. Hex Quick Change 75
QA1L12D4LD Lever Start 0 - 4.0 0 - 35.4 1270 0.7 1.5 226 8.9 13.2 0.52 33 1.3 1.34 1/4 in. NPT 16 1/4 in. Square 75
QA1L12D6LD Lever Start 0 - 4.0 0 - 35.4 1270 0.7 1.5 226 8.9 13.2 0.52 33 1.3 1.34 1/4 in. NPT 16 3/8 in. Square 75
