WIVOR

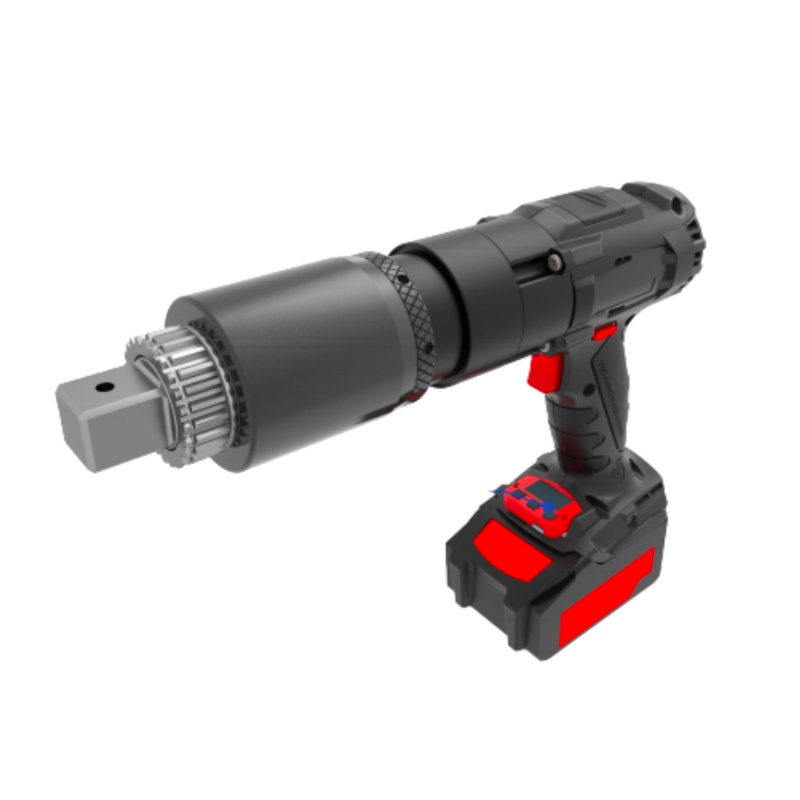

BM-LP-TC Smart charging torque wrench

High Precision Planetary Gear Transmission System

The planetary gear transmission system with high precision, high rigidity, high speed ratio, high life, low inertia and low vibration is adopted.

Dual-speed function

High-low speed shift—optional

high efficiency brushless motor

The brushless DC motor is used because of its small size, high life, light weight, low inertia and low vibration.

Forward and reverse switching switch, safety lock

The high service life and super lubrication of the labor-saving forward and reverse switch makes the fast and sensitive work of tightening and loosening.

Trigger

The industrial-grade starting trigger with high service life and high sensitivity is adopted.

gun grip

The ergonomic gun-style grip is designed and can be equipped with an anti-slip rubber sleeve.

Less effort, more safety.

High capacity air-cooled lithium battery

The large-capacity air-cooled lithium battery greatly guarantees the safety of the use.

رقم الصنف :
BM-LP-TC Smart charging torque wrench
الطلب (الحد الأدنى لكمية الطلب) :
1PC
قسط :
T/T
أصل المنتج :
China
لون :
Black
ميناء الشحن :
Xiamen
مهلة :
15days

استفسر الآن

تفاصيل المنتج

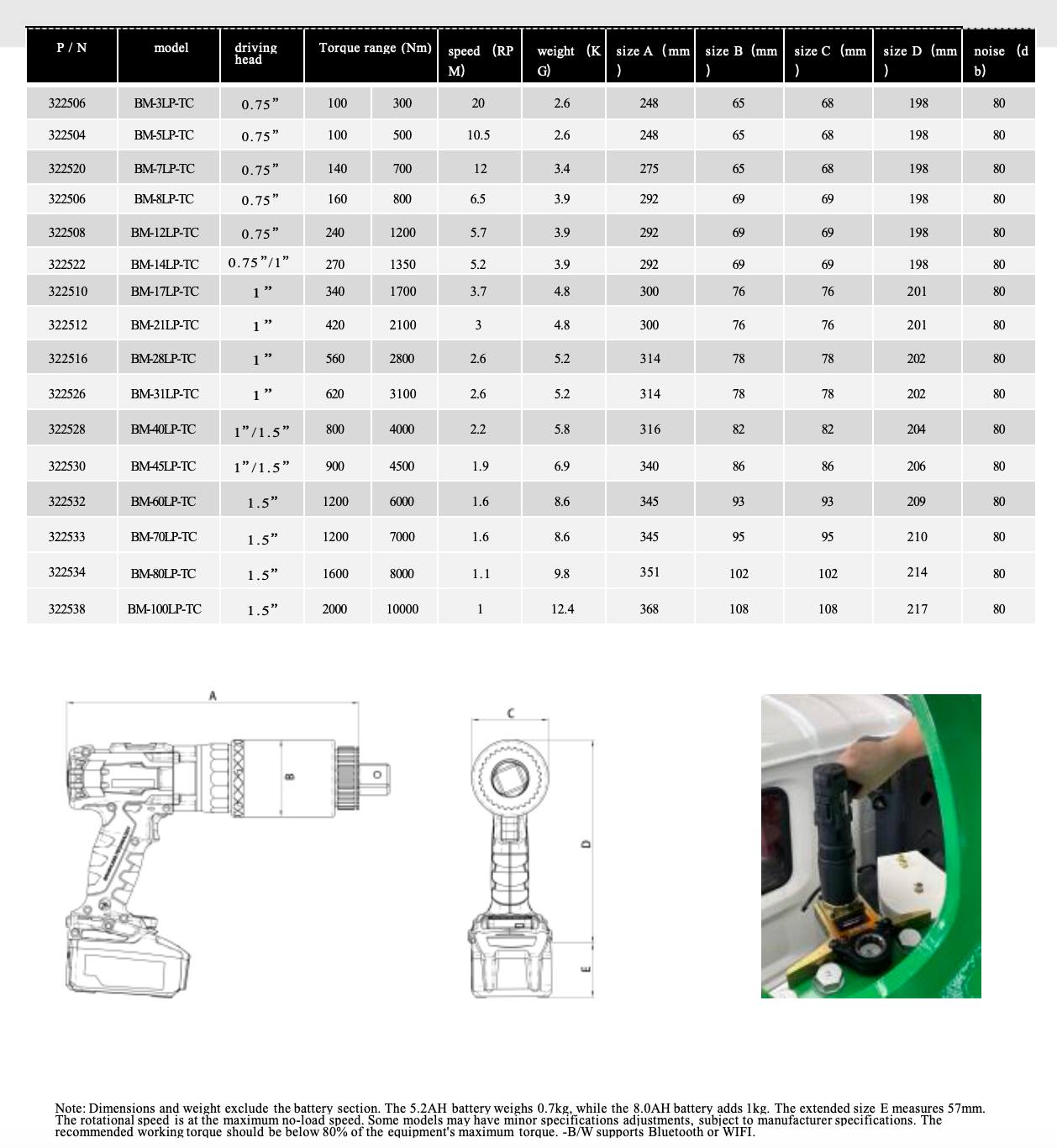

Model Specifications

High Precision Planetary Gear Transmission System

The planetary gear transmission system with high precision, high rigidity, high speed ratio, high life, low inertia and low vibration is adopted.

Dual-speed function

High-low speed shift—optional

high efficiency brushless motor

The brushless DC motor is used because of its small size, high life, light weight, low inertia and low vibration.

Forward and reverse switching switch, safety lock

The high service life and super lubrication of the labor-saving forward and reverse switch makes the fast and sensitive work of tightening and loosening.

Trigger

The industrial-grade starting trigger with high service life and high sensitivity is adopted.

gun grip

The ergonomic gun-style grip is designed and can be equipped with an anti-slip rubber sleeve.

Less effort, more safety.

High capacity air-cooled lithium battery

The large-capacity air-cooled lithium battery greatly guarantees the safety of the use.

0.96-inch LCD display

The brushless motor eliminates the need for carbon brush replacement

Digital adjustment and display of torque and wrench working status parameters

Multi-mode adjustment, torque digital adjustment, or torque adjustment in 1 to 99 gear positions

Programmable preset for 10 common output torque or gear positions

Any torque value can be set within the torque range.

High reliability and stability with multi-pole gearbox

User (operator, administrator) level management

The buzzer indicates suitability for factory environments.

Tighten the result simulation judgment follow function

Background torque calibration software compensation function

Anti-reaction force arm locking to achieve unloading function

Overheating temperature monitoring function of wrench

Battery power monitoring and compensation

torque overload limit function

High-capacity air-cooled battery, fast-charging charger

Accuracy ±3%, repeatability ±2%

Supports larger-capacity air-cooled lithium batteries with capacities of 5.2/8.0AH

Standard compliant standard counterweight arm, customizable counterweight arm available

Supports the installation of hoisting systems for safer high-altitude operations

Supports local log and USB log reading*-P

This device can store more than 50,000 pieces of information*P

Optional mobile module *NB
